Whale "Grey IC" Grey/Shower Waste System

Grey IC® Grey Waste System with Two Way Manifold - 12 VDC

Unique Intelligent Control™ means that the Gulley IC Kit is all you need to manage waste from multiple drains through one pump. Electrical signals are sent from the Two Way Manifold IC only when waste water needs to be pumped out.

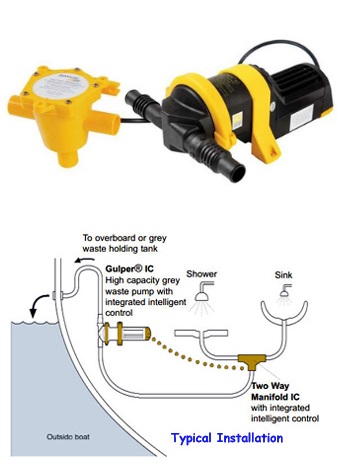

Whale Grey IC shower waste system have intelligent control electronics built in, ensuring that the pump operates only when required. The system includes a Gulper® IC high-capacity electric waste pump and 1" (25mm) Two Way Manifold IC with 12 feet (4m) of cable for easy installation.

One pump automatically handles waste from your shower on board - No manual switches required. The Two Way Manifold IC senses the grey waste level and sends electrical signals to Gulper IC to turn off and on only when required. This system is ideal for installations where you don't have space for a grey waste tank.



Gulper IC® - Automatic control - Receives electrical signals to turn on/off as required:

• One pump handles waste from multiple drains

• Fast drainage - High capacity up to 19 litres (5 US gals) per minute
• Long Life - Self primes and can run dry

• Soft start - Protects the pump for long life

• Easy to install - Including uneven surfaces

• Time delay to allow for optimum drainage

• Low current controlled switching - No switch failure from high currents

• Fully automatic - Handles waste from multiple drains as required
• Senses waste level through wall - Not in contact with water

• Removes the need to install a bulky, grey waste tank

• Service free - No moving parts to clog or burn


• Voltage - 12 VDC

• Voltage Range - 10 to 13.6 VDC

• Current Profile - Soft stop/start

• Recommended Fuse Size - 10 Amp automotive

• Minimum Wire Size - 16 AWG (1.5mm)

• Hose Connections - Barbed connections, 3/4" (19mm) and 1" (25mm)
• Material in Contact with Fluid - Glass-filled nylon, Santoprene®, stainless steel

• Weight - 3.5 Lbs (1.6kg)
