Flojet 4125 Series Bilge Pump - 12 VDC

"Quad II Diaphragm" Bilge Pump - 4125 Series

For Bilge, Bait Tank, Diesel Transfer and General Purpose Pump Applications up to 300 GPH

This self-priming pump with 12-volt DC electric motor is a four-chamber positive displacement diaphragm design that can run dry without risk of damage. It has an automatic pressure switch and an open flow of 5.0 GPM suitable for 30-50 gallon tanks. It is designed to self-prime up to 6-feet suction and fill a 50 gallon-tank in less than 8 minutes (this allows 5-6 changes per hour).

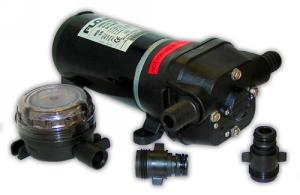

Pump includes strainer and two plug-in port connectors for easy installation.


Features:

• Made of corrosion-resistant materials

• Polypropylene body construction

• Pump runs dry without damage

• Permanent magnet-type motor rated for intermittent-duty

• Ball bearings at front and rear endbell

• Soft, noise absorbing mounts

• Robust 4-chamber diaphragm positive-displacement design for high flow rate

• Quick-connect plug-in ports for easy installation

• Thermal-overload protected

• Meets USCG Electric Standards

• CE Listed

• 1-Year manufacturer's limited warranty


• 12 VDC draws maximum 8.5 amps at 10 PSI

• Maximum flow at 5.0 gallons/minute [18.9 lpm]

• Self-primes up to 6-feet (3.2 meters) vertical lift

• Two port connectors - (1) 3/4" hose and (1) 3/4" NPT-threaded
• Dimensions - 3.75" x 6.3" x 9.9" (95 x 160 x 252mm)

• Weight - 6.0 Lbs. (2.8 kg)


MSRP

$314.65

U/M

/ EA

Price

$267.45

Core

Part Number

4125-114A

Manufacturer

ITT SHARED SERVICES (FLOJET)
