45mm Aluminum Element Single Footblock
Part No. 6237
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element's design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

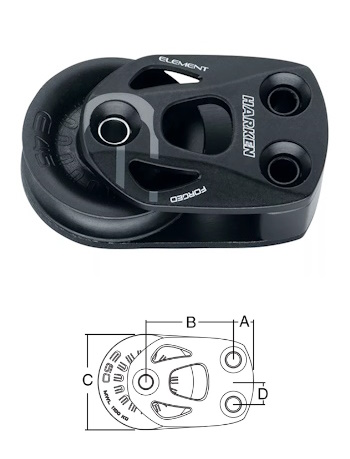

Dimensions:
Length - 3" (76mm)
Height - 1" (25mm)
A - 7/16" (11mm)
B - 1-5/8" (41.5mm)
C - 1-3/4" (45mm)
D - 3/8" (9.5)
Mfg No. 6237
Sheave Diameter 1-3/4" (45mm)
Max Line Diameter 1/2" (12mm)
Fasteners 6mm
Max Working Load 1543 Lbs (700kg)
Breaking Load 3,086 Lbs (1400kg)
Weight 3.5 oz. (100g)
Sold individually
