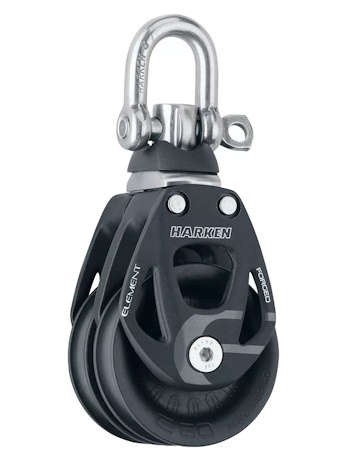

60mm Aluminum Element Double Block - Swivel
Part No. 6269
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element0s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Mfg No. 6269
Sheave Diameter 2-3/8" (60mm)
Length 5-3/4" (146mm)
Shackle Pin Dia. 5/16" (8mm)
Max Line Diameter 9/16" (14mm)
Max Working Load 3032 Lbs (1375kg)
Breaking Load 6064 Lbs (2750kg)
Weight 12.4 oz. (355g)
Sold individually
