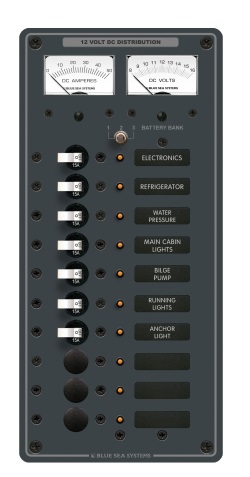

Blue Sea Systems 8082 Breaker Panel - DC Branch - 10 Positions

Vertical 10-Position 12-VDC Circuit Breaker Panel

Slate Grey Finish

This 50-Amp panel is industry standard height and width and fully pre-wired with all positive, negative and grounding buses installed. All circuit label positions are backlit on standard panels - No kit is required.

Panel also features analog DC amp/volt meters that include toggle switch for mounting up to 3 battery banks. These analog meters are owner-upgradable to 24V meters (Mfg# 8240) or 18-32V meters (Mfg# 8243).


Features:

• "ON" indicating LEDs installed in all circuit positions

• Countersunk mounting holes throughout

• Heavy 1/8" aluminum 5052 alloy construction

• Two-part polyurethane finish - Slate Grey

• MIL-C-5541C immersion undercoating or equivalent for lifetime corrosion resistance

• Completely wired and ready to install

• Detailed installation instructions and cut-out template included
• Includes set of 30 common DC labels


• Voltage - 12 VDC

• Analog amp/volt meters installed (Mfg# 8028/8041)

• 7 installed single-pole circuit breakers - 15 amps each

• Circuit breaker rating - 15 amps

• Panel cumulative rating - 50 amps


• Width - 5.25" (133.35mm)

• Height - 11.25" (285.75mm)

• Weight - 2.76 Lbs. (1.25 kg)
