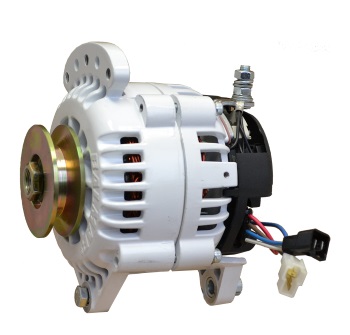

6-Series Small Case 12-Volt Alternator - Dual Foot 70 Amp
Light-Duty, P-Type (Positive Field Excitation)
Balmar's newest 6-Series 12-Volt Alternators deliver large-scale charging capacity in a package that's tailor-made for simple, trouble-free installations on the most popular marine engines. The patented "Smart Ready" internal regulator provides an additional assurance of dependability - and can serve as primary regulator or backup if external regulator fails.
Features:
- Efficient, cool-running dual internal fans
- Ventilated cast-aluminum case construction
- Durable powdercoat finish for high corrosion resistance
- Isolated grounding terminals
- "Smart Ready" internal voltage regulation to 14.1V
- External regulation - P-type, fixed voltage or multi-stage
- Sealed brush design complies with USCG Title 33, ISO J1171, and SAE 8846 ignition protection standards
- Safe for gas or diesel engines
- Charging output - Single positive post
- Stator Output - Rectified Alternating Current (AC)
- Bearings - Sealed, internally lubricated HD
Specifications:
- Tensioning Arm - 180 degree offset
- Rotor/Stator - 12-Pole
- Maximum RPM - 15,000
- Case diameter - 5.75"
- 1-Year limited manufacturer's warranty
These light-duty alternators comply with USCG Title 33, ISO J1171, SAE 8846 and internaltional CE ignition protection standards.
Note: The "Smart Ready" internal regulator can be left disconnected, or it can be connected to the charging system with a simple double-throw toggle switch for rapid deployment.
Mfg No. 60-70-SV
Mount Type Dual Foot 3.15" ID Saddle
Rated Amperage 70
Amperage Output* 57-69@ 2K RPM, 63-76@ 5K RPM
Mimimum Belt Width 3/8"
*Find detailed Alternator Hot & Cold Output Curves on the Balmar website at www.balmar.net.
Sold individually
-
MSRP
-
$859.00
-
U/M
-
/ EA
-
Price
-
$615.00
-
Core
-
-
Part Number
-
60-70-SV
-
Manufacturer
-
BALMAR LLC
-
Brand
-
-
ETA
-
-
Quantity Available
-
1
-
Quantity On Order
-
