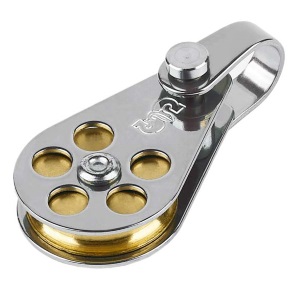

Wire / Utility Block - Bronze Sheave - 27mm
SKU: 200800
Wire and Utility Block - 27mm
Stainless Steel Cheeks
Schaefer's standard wire blocks are perfect for use with control lines or halyards, but you can also use them to solve a variety of other lead problems. Stainless cheeks offer high abrasion and chafe resistance, as well as an opening to accept swaged or nico-pressed wires. These utility blocks also offer a removable ferrule design for quick and strong attachment to a varienty of fittings.
- Nomex™/Teflon™ bearings for high load/low friction applications
- Ideal for high static loads created at the base of the mast
Mfg No. 33-02
Maximum Wire Size 1/8" (3mm)
Sheave Diameter 1-1/16" (27mm)
Sheave Material Bronze
Pin Diameter 3/16" (5mm)
Dimensions (Length x Width) 2-19/32" x 1-3/16" (66 x 30mm)
Thickness 3/8" (9mm)
Safe Working Load 900 Lbs (410kg)
Weight 1.75 oz. (50g)
-
MSRP
-
$95.20
-
U/M
-
/ EA
-
Price
-
$80.92
-
Core
-
-
Part Number
-
33-02
-
Manufacturer
-
SCHAEFER MARINE INC
-
Brand
-
-
ETA
-
-
Quantity Available
-
2
-
Quantity On Order
-
