Wide "D" Shackle - Stainless Steel - 1/2"

Wide Dee Shackle

Type 316 Stainless Steel Body and Pin

• High strength-to-weight ratio


Mfg No. RF641*

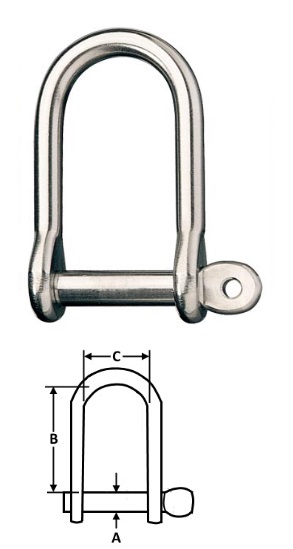

(A) Pin Diameter 1/2" (12.7mm)

(B) Inside Length 2-11/16" (68mm)

(C) Throat Width 1-5/16" (33mm)

UDL (BL)¹ 16,980 Lbs (7,700kg)

PL (BL)² 12,130 Lbs (5,500kg)

Weight 6.0 oz. (170g)

* Shackle pin drilled for seizing wire.

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$42.72

U/M

/ EA

Price

$42.72

Core

Part Number

RF641

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

5

Quantity On Order
