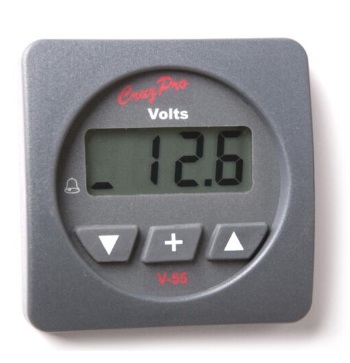

V55 Digital Voltmeter - 1 Bank
4-Digit LCD Display - Square Face - Voltage for 12/24 Battery
The V55 voltage gauge provides accurate low-cost digital instrumentation for one bank of batteries between 9.5 and 33 Volts. It also allows user to set independent Low and High voltage alarms. When activated, the V55 built-in 85dB alarm will sound and the display will flash.
All constants and calibrations are pre-set during manufacture but user may alter these settings to suit any particular need. Calibrations can be altered using the front-panel switches. Display battery voltage (9.5 to 33.0 VDC) or set the high and low volt alarms independently using the front panel switches and the alarm can be turned ON/OFF with the press of a single key.
The V55 outputs digital voltage data once per second in the standard NMEA 0183 serial data line at 4800 BAUD. This ASCII information can be used to log performance or repeat the display information at a remote location on the matching CruzPro RP60 and/or RP110 data repeaters. If NMEA 0183 serial data is not required, then the output terminal can be programmed as an external alarm output pin.
The V55 draws only 0.017 amps and can be left on continuously. 5 levels of backlight (including OFF) can be selected from the front panel and is saved to non-volatile memory.
Specifications:
