Twin Sheet Lead Block - Black

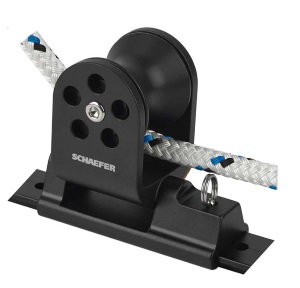

Schaefer's Twin Sheet Lead Blocks allow for two sheets through its wide, flared sheave. This permits easy sail changes. The cage and body are computer-machined, resulting in incredible strength and precision. Each block provides a low-profile articulating sheave for a proper lead from the sail through the block and into your cockpit.
Sheaves are hardcoat-anodized aluminum, and they run on Schaefer's low-friction "Nomex"/"Teflon" bearing. The "Nomex"/"Teflon" bearing is braided and saturated with epoxy resins, providing a low-friction surface between the bearing and the stainless steel high-load axle. In use, "Teflon" migrates from the bearing, providing friction reduction with each rotation.
Mfg No. 32-77
Track Size 1" x 1/8" (25 x 3mm)
Boat LOA1 27 Ft (8m)
Boat Displacement1 5,000 Lbs (2,270kg)
Sail Area1 315 ft2 (29m2)
Sheave Dia. 1-1/2" (38mm)
Max Line (2) 1/2" (13mm)
Dimensions (L x W x H) 3-1/2" x 1-11/32" x 3-9/32" (89 x 34 x 83mm)
SWL2 2,500 Lbs (1,135kg)
Weight 10 oz. (284g)
1. Boat size recommendations are for typical genoa lead applications.
2. SWL (Safe Working Load)
