Trunnion Snap Shackle - Small Swivel Bail - Stainless Steel - 1-13/32"

SKU: 502390

$449.701 / EA

Enter Quantity

Options:

Add this product to your shopping cart to view your price

Trunnion Snap Shackle - Small Swivel Bail - Stainless Steel

Grade 15-5PH Investment Cast Stainless Steel Body and Hasp
Stainless Steel Plunger Pin and Spring

Trunnion swivel head allows both 360-degree rotation and side-to-side articulation
Split ring on plunger pin is spot-welded for security
A lanyard can be attached to the plunger pin for easy opening

Mfg No. RF6511

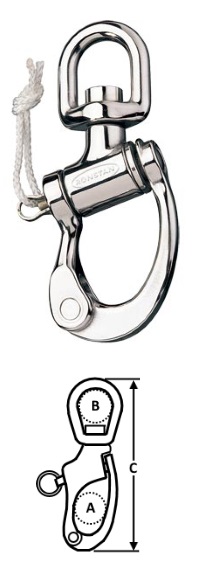

Hook ID (A) 1-13/32" (36mm)

Eye ID (B) 7/8" (22mm)

Overall Length (C) 5-29/32" (150mm)

MWL¹ 8,270 Lbs (3,750kg)

BL² 16,530 Lbs (7,500kg)

Weight 16.0 oz. (454g)

1. MWL (Maximum Working Load)

2. BL (Breaking Load)

MSRP: $449.701
U/M: / EA
Price: $449.701
Core
Part Number: RF6511NC
Manufacturer: RONSTAN INTERNATIONAL
Brand
ETA
Quantity Available: 2
Quantity On Order
