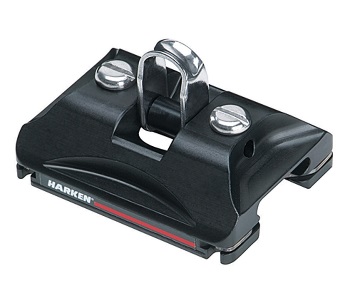

CB (Captive Ball) Traveler Car
22mm Small Boat
Small Boat CB traveler cars fit dinghies, keelboats, beachcats, and offshore boats to 27 feet (8 meters).
The one-piece solid aluminum construction is lightweight and strong.
Ball bearings run on machined aluminum hardcoat-anodized races for smooth trimming and easing.
Stainless steel wire guides keep balls captive when the car is off the track.
Small Boat low-load cars with a 500 lb (227 kg) maximum working load use Delrin® balls. Small Boat cars with high maximum working loads use high-strength Torlon® ball bearings. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates. Torlon® is a registered trademark of Solvay Advanced Polymers.)
Harken ball bearing traveler cars with multi-part purchases allow easy adjustment of loaded sails from the cockpit. Loop cars matched with Carbo T2 AirBlocks® attached with high-tech line provide the ultimate lightweight, low-profile system.
Mfg No. 2727
Description High load Pivoting shackle
Length 2-7/8" (73mm)
Width 2-1/4" (57mm)
Car Body Height 15/16" (24mm)
MWL¹ 850 Lbs (386kg)
BL² 2500 Lbs (1134kg)
Weight 4.64 oz. (132g)
1. MWL - Maximum Working Load
2. BL - Breaking Load
