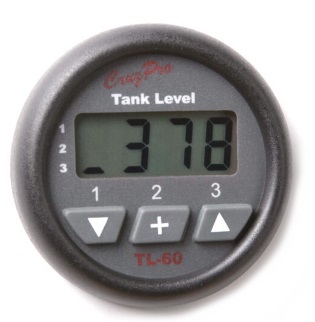

TL60 Digital Level Gauge/Alarm for 3 Tanks - Round

TL60 Digital Level Gauge/Alarm for 3 Tanks - Round

SKU: 711146

$286.06 / EA


TL60 Digital Fuel Gauge for 3 Tanks

4-Digit LCD Display

This fuel gauge works with all popular fuel senders and provides digital display of the fuel tank level in three separate tanks.

The TL60 is manufactured to work with any standard resistance type level sender having the following resistance ranges: 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohms (and their reverse 30-0, 70-0, 90-0, 73-10, 180-10, 240-33, 250-40 ohms). The TL60 will actually also work with any non-standard resistive sender that varies from a minimum of 0-Ohms to a maximum of 300-Ohms or a maximum of 300-Ohms to a minimum of 0-Ohms. For example, a resistive sender that varies in resistance from 100 to 150 ohms would work. So would a sender that varies from 75 ohms to 25 ohms.

Specifications:

  • Operating voltage from 9.5 to 33.0 VDC
  • Current drain - 0.018 amps nominal
  • Operating temperature from 32° F to 122° F (0° C - 50° C)
  • Five levels of backlighting, including OFF
  • Built-in 85dB audible alarm with independent ,settable low and high level alarm points
  • Data output as NMEA 0183 serial 4800 BAUD for each tank separately
  • The NMEA 0183 data output terminal may be programmed as an external alarm output

Fuel Transfer Pump Control:
  • Programmable lower fuel level limit to turn ON a fuel transfer pump
  • Programmable upper fuel level limit to turn OFF the fuel transfer pump

This monitor is supplied in a waterproof case with choice of round or square face.
  • Case size - 2.5" width x 4.1" depth (61 x 104mm)
  • Mounting hole - 2-1/8" (55mm) diameter
  • CE certified

Note: Senders for this gauge must be purchased separately. The TL60 works with all popular fuel senders, both American and European standards (Centroid, Faria, GM, VDO, Teleflex, Stewart Warner, etc.).

U/M
/ EA
Price
$286.06
Part Number
TL60RND
Manufacturer
CRUZ PRO LTD.
Quantity Available
3
Quantity On Order
