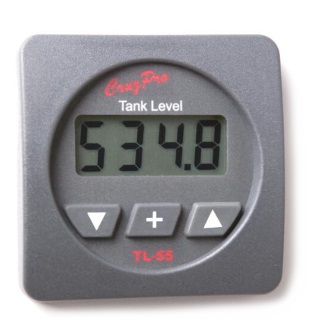

TL55 Digital Tank Level Gauge with Alarm - Square

Digital Tank Level Gauge with Alarm

Model TL55 - 4-Digit LCD Display

This Tank Level Gauge provides a digital display in two modes and supports programmable fuel-transfer pump control. Level can be displayed in Liters or Gallons or as a Percentage of Tank Volume (0-100%).

The TL55 has been pre-programmed to work with all known resistance-type level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohms output (and their reverse) used by many popular sending units using both American and European standards (Centroid, Faria, GM, VDO, Teleflex, Stewart Warner, etc.).

Note: Senders for this gauge must be purchased separately.

Specifications:

• Operating voltage from 9.5 to 33.0 VDC

• Current drain - 0.018 amps nominal

• Operating temperature from 32° F to 122° F (0° C - 50° C)

• Five levels of backlighting, including OFF

• Built-in 85dB audible alarm with independent ,settable low and high level alarm points

• Data output as NMEA 0183 serial 4800 BAUD ($IIXDR sentence)

• The NMEA 0183 data output terminal may be programmed as an external alarm output or transfer pump control

• Programmable lower fuel level limit to turn ON a fuel transfer pump
• Programmable upper fuel level limit to turn OFF the fuel transfer pump

• Case size - 2.5" width x 4.1" depth (61 x 104mm)

• Mounting hole - 2-1/8" (55mm) diameter

• CE certified

MSRP

U/M

/ EA

Price

$142.99

Core

Part Number

TL55SQ

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

3

Quantity On Order
