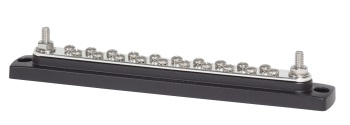

Terminal Block - 150A Common BusBar - 20-Gang/2-Stud

Terminal Blocks with Common Busbar

The industry standard busbar for positive distribution and the collection of negative or AC ground circuits. Busbars are used to consolidate multiple wires or to feed multiple circuits. These Blue Sea Systems units all feature a tin-plated copper bus for maximum conductivity and corrosion resistance. Each is rasied off base to provide easy access to multiple wires on a single screw or to a stud post and are pressed onto the base to eliminate need of securing nut. Stainless steel studs allow high torque for excellent electrical contact.


Features:

• Maximum voltage rating - 48 volts DC/300 volts AC

• Continuous amperage - 150 Amps DC/130 Amps AC

• UL-94-V0 rated polycarbonate base material to resist high heat
• Tin-plated copper bus(CDA 110 / UNS 11000)

• Screws - Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal

• Studs - Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal

• Recessed mounting holes guard against accidental shorts to metal mounting surfaces

• CE Certified


MSRP

$51.18

U/M

/ EA

Price

$43.50

Core

Part Number

2302

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

2

Quantity On Order

5
