Digital Water Temperature Gauges with Alarm

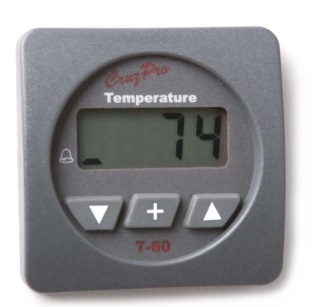

Model T60 - 4-Digit LCD Display
This temperature gauge displays engine oil or water temperature in degrees F. or C. and has built-in calibration curves for most popular temperature senders manufactured by VDO, Teleflex, Faria, Stewart-Warner and others (sender not provided). The sender type is easily selected with the front panel keys. Low and High Temperature alarms can be set over the entire range of the instrument/sender. When activated, the T60 built-in 85dB alarm will sound, and the display will flash. The alarms can be enabled or disabled with a single key press.
Five levels of backlighting can be selected, and all set-up calibrations, constants, alarm values, and sender type are saved to nonvolatile memory. Data is output on an NMEA 0183-compatible serial data output.
All constants and calibrations are preset during manufacture, but you may alter these settings to suit your particular needs. Calibrations can be altered over a wide range using the front-panel switches. All information is automatically saved to nonvolatile memory.
Specifications:
