Swivel - Slotted Head Pin
This Swivel has a stainless steel ball-bearing race
Grade 316 Stainless Steel Body & Pin
Mfg No. RF75

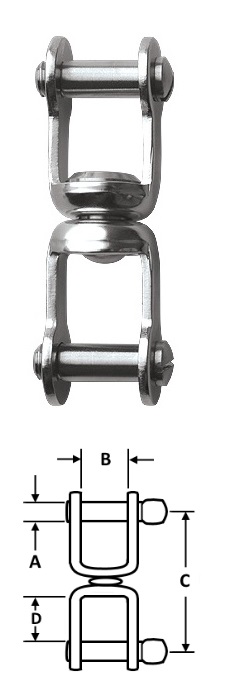

(A) Pin Dia. 5/16" (7.9mm)
(B) Throat Width 21/32" (17mm)
(C) Pins Ctr-Ctr 2-3/8" (60mm)
(D) 5/8" (15.8mm)
UDL (BL)¹ 5,070 Lbs(2,300kg)
PL (BL)² 4,620 Lbs (2,100kg)
Weight 0.5 oz. (15g)
1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.
2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.
