Swivel - Coined Head Pin
Grade 316 Stainless Steel Body & Pin
Mfg No. RF120
UDL (BL)¹ 1,430 Lbs (650kg)
PL (BL)² 1,430 Lbs (650kg)
Weight

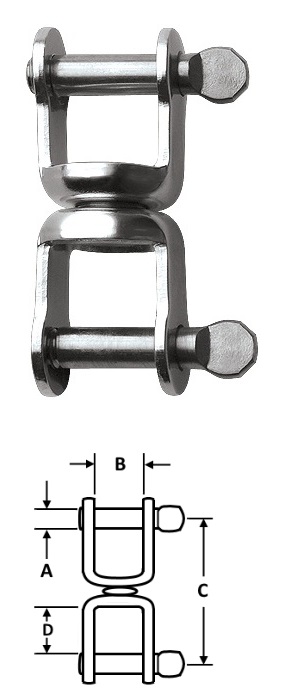

Measurements:
A 3/16" (4.8mm)
B 15/32" (12mm)
C 1-1/4" (32mm)
D 11/32" (8.7mm)
1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.
2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.
