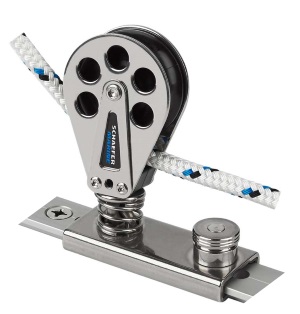

Spring-Loaded Block on Lined Slide - 1-1/4" T-Track - Max Line 1/2"

Spring-Loaded Genoa Block on Slide with Liner

Stainless Steel

Spring-loaded blocks offer a wide flexibility in sheeting angles, allowing up to a 45-degree variation to each side of the track. The "Spring Cap" design fully supports blocks under any conditions. These blocks feature polyethylene liners held "captive" within the slide, allowing for years of trouble-free and friction-free service.

• Stainless steel stand-up spring blocks on 1-1/4" T-track sliders
• "Delrin" sheaves

• Stainless steel springs support blocks

• Spring pins lock slides in place

• Polyethylene liners reduce friction on slides


Mfg No. 705-92

Track Size 1-1/4" x 3/16" (32 x 5mm)

Boat LOA¹ 33 Ft (10m)

Boat Displacement¹ 12,000 Lbs (5,455kg)

Sail Area¹ 520 ft² (48m²)

Sheave Dia. 2-3/8" (60mm)

Max Line 1/2" (12mm)

Dimensions (L x W x H) 4" x 1-9/16" x 4-15/16" (102 x 39 x 126mm)

SWL² 2,250 Lbs (1,020kg)

Weight 14 oz. (397g)

1. Boat size recommendations are for typical genoa lead applications.

2. SWL (Safe Working Load)

MSRP

$348.55

U/M

/ EA

Price

$296.27

Core

Part Number

705-92

Manufacturer

SCHAEFER MARINE INC

Brand

ETA

Quantity Available

2

Quantity On Order
