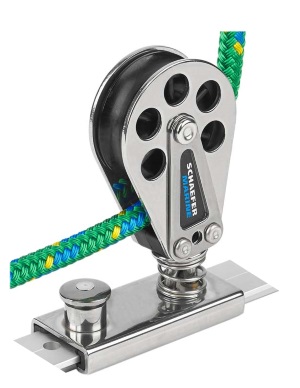

Spring-Loaded Block on Lined Slide - 1" T-Track - Sheave Dia 2"
SKU: 201355
Spring-Loaded Genoa Block on Lined Slide for 1" T-Track
For Boats up to 27 Feet (8m)
Stainless Steel/UV-Resistant "Delrin" Sheave
Spring-loaded blocks offer a wide flexibility in sheeting angles, allowing up to a 45-degree variation to each side of the track. The "Spring Cap" design fully supports blocks under any conditions. This blocks features polyethylene liners held "captive" within the slide, allowing for years of trouble-free and friction-free service. The spring pin locks slide in
place.
- Track Size - 1" x 1/8" (25 x 3mm)
- Boat Displacement - 5,000 Lbs (2,270kg)
- Sail Area - 315 square feet (29 square meters)
Mfg. No. 505-82
Maximum Line Diameter 7/16" (11mm)
Sheave Diameter 2" (51mm)
Dimensions Length x Width x Height 3" x 1-1/4" x 4-5/32" (76 x 31 x 105mm)
Bearing Height 2-7/32" (56mm)
Safe Working Load 1,750 Lbs (795kg)
Weight 6.5 oz. (184g)
Sold individually
-
MSRP
-
$268.80
-
U/M
-
/ EA
-
Price
-
$228.48
-
Core
-
-
Part Number
-
505-82
-
Manufacturer
-
SCHAEFER MARINE INC
-
Brand
-
-
ETA
-
-
Quantity Available
-
2
-
Quantity On Order
-
