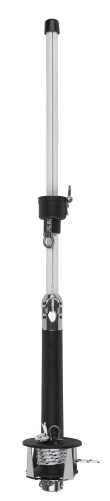

SnapFurl Headsail Reefing and Furling System
For Daysailers and Small Cruising Sailboats
SnapFurl offers light weight, high strength and smooth operation with very easy installation. The SnapFurl CF-500 system features a unique, interlocking round Geon™ PVC foil that allows for owner installation directly over your existing headstay, without the need for special tools or modifications, within an hour! The foil also lends itself to trailerable boats to ease the problems with mast raising or lowering.
The CF-500 features a reinforced, injection-molded Torque Tube and Upper Swivel for incredible strength and lightness.
- Perfect for trailerable boats
- Furling and reefing capabilities
- Open drum design with stainless cage*
- Double race of Torlon™ ball bearings in upper swivel and lower drum
- Two-piece, interlocking PVC Geon™ extrusion - Easily cut with a hand saw
- Stainless steel feeder with captive fasteners
- No headstay modifications
*CF-500 Drum Diameter - 2" (51mm)
Mfg No. CF-500
Boat Size 16-24 Ft (4.9-7.3m)
Headstay Diameter** 1/8" (3mm) or 5/32" (4mm) or 3/16" (5mm)
Rod Size** ---
Pin Diameter** 1/4" (6mm) or 5/16" (8mm) or 3/8" (9.5mm)
System Length 31'-1" (9.5m)
Line Capacity** 25 Ft x 1/4" (7.6m x 6mm) or 19 Ft x 5/16" (5.8m x 8mm)
Extrusion One length Single groove Accepts #5 luff tape
** Accepts either dimension listed below column header
Sold individually
-
MSRP
-
$1,397.95
-
U/M
-
/ EA
-
Price
-
$1,188.26
-
Core
-
-
Part Number
-
CF-500
-
Manufacturer
-
SCHAEFER MARINE INC
-
Brand
-
-
ETA
-
-
Quantity Available
-
0
-
Quantity On Order
-
