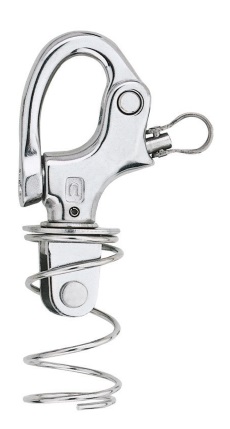

Snap Shackle - Stainless Steel
This snap shackle fits a wide variety of blocks and make them removable.
Many sailors use a snap shackle on the lower vang block so that the latter can be moved from the mast base to the toe rail for use as a preventer.
Mfg No. 112
Shackle Pin Diameter 1/4" (6mm)
Length¹ 3-3/8" (86mm)
Max Working Load² 1,500 Lbs (680kg)
Breaking Load³ 3,000 Lbs (1,361kg)
Weight 4.5 oz. (128g)
1. Length - Not including spring
2. Safe Working Loads are no more than half the minimum breaking strength.
3. The Breaking Strengths shown are derived from tests that supported 80% of the length of the screw pin that is unsupported, which is similar to the area of a post in a block.
