Slotted Pin Shackle - Lightweight - Stainless Steel - 3/16"

Slotted Lightweight Pin Dee Shackle

Type 316 Stainless Steel Body and Pin

• High strength-to-weight ratio

• Low profile to prevent snagging on ropes, etc.


Mfg No. RF707S

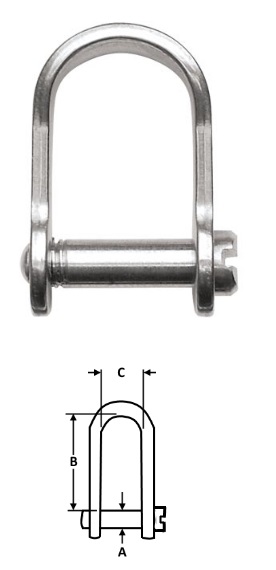

(A) Pin Diameter 3/16" (4.8mm)

(B) Inside Length 21/32" (17mm)

(C) Throat Width 1/2" (13mm)

UDL (BL)¹ 2,640 Lbs (1,200kg)

PL (BL)² 1,540 Lbs (700kg)

Weight 0.4 oz. (10g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.
