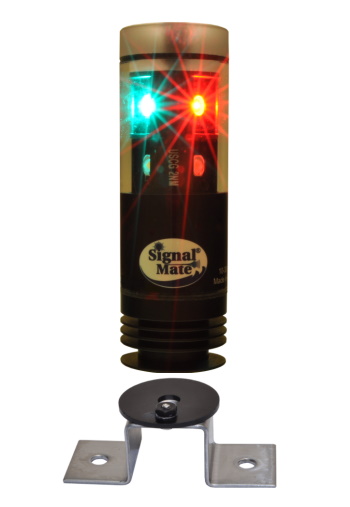

Signal Mate Navigation/Anchor Light - Red/Green

Signal Mate Lighting

LED Tri-Color Navigation/Anchor Light & Photodiode - Red/Green

Signal Mate LED Combination Tri-Color / Anchor Navigation Light with Photodiode uses only 1/5 the power of comparable incandescent Tricolor lights.

Features:

• Includes optional photodiode - automatically turns anchor light OFF at daylight, ON at dusk

• Clear window on top of light allows stern light to shine upward, illuminating the wind vane for night sailing

• Solid construction

• Waterproof, submersible

• 3-wire installation

• Suitable for sailboats up to 65 ft.

• Mounting bracket included

• Light Color: Red / Green with White (anchor light)

• Visibility: 2 NM

• Vertical Viewing Angle: +/- 36°

• Mounting: 1/4 x 20 female threads at bottom of light or optional Signal Mate 360? bracket (Model BRKT360)

• Wiring: 2-1/2 feet UV outdoor 20-AWG wire

• Operating Voltage Range: 10 - 30 Volt DC

• Current Draw: 0.3 Amp @ 12 Volt DC

• Material: Black hard-coated anodized aluminum housing with polycarbonate lens

• Dimensions: 1.5" diam. x 4.5" H

• Warranty: 5 Year Limited Warranty covering materials and workmanship
• Approvals: USCG 2NM, ABYC-A16, COLREGS '72

MSRP

$400.00

U/M

/ EA

Price

$380.00

Core

Part Number

TRIANC3P

Manufacturer

SIGNAL MATE LLC

Brand

ETA

Quantity Available

1

Quantity On Order
