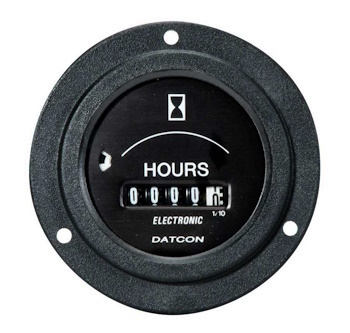

Round/Black Engine Hour Meter - 10-80V

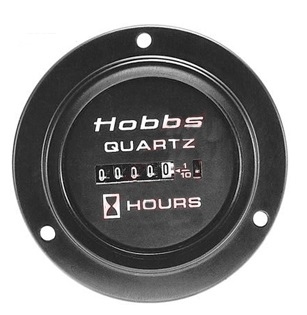

Hobbs Hour Meter - 85000 DC Series

The Hobbs 85000 Series of DC hour meter indicates when it is time to service equipment, helping you decrease downtime, and increase maintenance efficiency. Each one is a technically advanced "Quartz Plus" package that provides a highly reliable electromechanical drive mechanism, an improved meter gear train, and a snap-together integrated chassis.

Every "Quartz Plus" meter passes 100% function, burn-in, and timing accuracy tests before shipping. These hour meters operate in a battery power range of 10-80 VDC and are available in round and rectangular mountable cases with glass lens.

Features:

• Custom CMOS (Complementary Metal Oxide Semiconductor) integrated circuit

• Operating time in hours and 1/10 hours

• 99999.9 running hour indicator with automatic recycle

• Quartz accuracy and totally sealed for durability

• Excellent vibration and shock resistance

• Precision-built, relay-driven, rotating wheel meter

• Broad temperature tolerance from -40 to 185° F.

• Battery system voltages from 6 to 80 VDC

• Standard Terminals - 1/4" male blade

• Digit size - 0.12" (3mm)

• UL Listed, CSA Certified, RoHS Compliant

• Conforms to MIL-M-3971 with reliable performance

MSRP

$162.99

U/M

/ EA

Price

$138.54

Core

Part Number

M-SW83501

Manufacturer

MAXIMA TECHNOLOGIES &

Brand

ETA

Quantity Available

4

Quantity On Order
