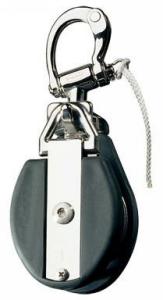

Ronstan Snatch Block - Stainless Steel Sheave - 80mm

Ronstan Snatch Block - Stainless Steel Sheave - 80mm

SKU: 502425

$545.985 / EA

Add this product to your shopping cart to view your price

Snatch Block with Trunnion Head - 80mm

Stainless Steel Sheave - Roller Bearings

Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. Soft, resilient cheeks reduce clatter and protect gelcoat and painted surfaces.

Grade 316 stainless steel sheaves running on needle roller bearings deliver low-friction performance and a long service life. An extra wide stainless steel frame extends to the full diameter of the sheave to prevent lines from becoming jammed between the sheave and cheeks. Sheaves are removable for easy maintenance and can be used with rope or wire. An attachment point is provided for a shock cord retainer to hang the block from the lifelines. The trunnion snap shackle svivels through 360 degrees and offers additional articulation from side to side.


  • High strength
  • Secure latch mechanism
  • Soft resilient cheeks


  • Grade 316 stainless steel frame, load strap, sheave & needle roller bearings
  • Soft thermoplastic rubber cheeks
  • Investment cast Grade 15-5PH stainless steel snap shackle


  • Removable spinnaker sheet deflector blocks for boats up to 43 feet
  • Temporary sheeting point while changing sheets for boats up to 43 feet (13m)
  • Temporary reefing block for boats up to 43 feet (13m)
  • Spare or replacement block for general use on larger boats, depending on line angle and load
  • Temporary outboard sheet lead for headsail trimming

Mfg No. RF6751

Sheave Diameter 3-1/8" (80mm)

Max Rope Diameter 3/4" (19mm)

Max Working Load 6,610 Lbs (3,000kg)

Breaking Load 13,230 Lbs (6,000kg)

Weight 52.2 oz. (1,480g)
