Quick Release Pin - "D" Detent Style - 5/16" x 1-1/2"

"Ball-Lok" Quick Release Pins - "D" Detent Style

AKA Fast Pins - Stainless Steel

Here are the pins that are popular with sailors in the know. No cotter keys required. No taping. The clean design prevents dislodging accidentally or fouling lines. Pins are non-corrosive, aircraft-quality stainless steel.

In manufacturing these "Ball-Lok" Quick Release Marine Pins, Avibank uses the same MIL specs and procedures that they use to produce fine quality products for the aerospace and defense industries, including Apollo moon landings and Shuttle missions.


Detent Style "D"

• One-handed release - Just one quick pull to remove

• For shear applications requiring quick assembly and disassembly
• Spring-loaded balls are staked in, exerting sufficient pressure to eliminate accidental release

• Great for rail fittings


Materials

• Body - 300 Series stainless steel

• Spring - 17-7 or 300 Series stainless steel

• Balls - 300 Series stainless steel

• Ring - 17-7 or 300 Series stainless steel


Calculated Double Shear Loads
3/16" Dia. - 3,900 Lbs
1/4" Dia. - 4,500 Lbs
5/16" Dia. - 7,100 Lbs
3/8" Dia - 10,300 Lbs
1/2" Dia. - 18,400 Lbs
5/8" Dia. - 28,900 Lbs

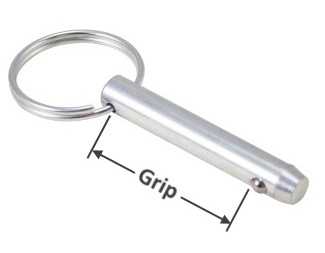

* Grip is the distance from the shoulder (the ring on "D" style) to the locking ball bearings. (See above image.)

Sample Size: 4D1.00
4 = 1/4 inch (Diameter in 16th's inch)
D = Detent Style
1.00 = 1 inch (Grip Length in 1/4" increments)

There may be delays in procuring this product. We will e-mail you with an estimated arrival time.

MSRP

$24.36

U/M

/ EA

Price

$20.71

Core

Part Number

5D1.50

Manufacturer

AVIBANK MFG. INC.

Brand

ETA

Quantity Available

58

Quantity On Order
