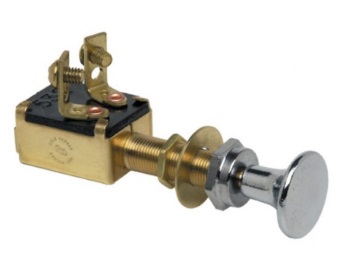

Push-Pull Switch - SPST OFF/ON - 1 Circuit

Heavy Duty Push-Pull Switch

For 6-36V DC applications - SPST OFF/ON
1 Circuit - Normally OFF

This one-circuit switch features heavy-duty marine construction, with all-brass case and copper alloy contacts.

Model M-628 case is not sealed. (Model M-482 features a gasket-sealed case.)


Specifications:

• SPST - Single Pole, Single Throw

• Brass housing and mounting stem

• Two brass screw terminals

• Chrome-plated brass knob

• Stem length - 1-1/4" (31.8mm)

• Thread size - 10-32

• Rated 10 amps at 12 VDC

• Fits panels up to 3/4" (19.1mm) thick

• Brass mounting hardware included - (1)face nut, (1)hex nut
  and (1)washer


MSRP

$44.89

U/M

/ EA

Price

$38.16

Core

Part Number

M-628-BP

Manufacturer

LITTELFUSE COMMERCIAL VEHICLE LLC

Brand

ETA

Quantity Available

0

Quantity On Order

12
