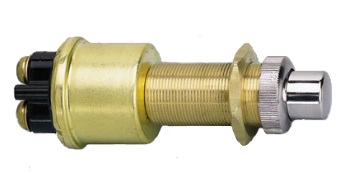

Push-Button Switch - SPST Momentary ON - 35 Amp

Extra Heavy-Duty Push Button Switch

For 6-36V DC applications - SPST OFF - Momentary ON

This Cole Hersee Momentary Switch is normally OFF, but ON when button is depressed with spring return to OFF.

Each is designed with silver contacts for extra-heavy duty applications to 36 VDC. These push button switches also feature non-corrosive marine construction, including moisture repellent insulators and brass cases with chrome-plated brass plunger buttons and face nuts.


Specifications:

• Mfg# - M-490-BP

• SPST - Single Pole, Single Throw

• Moisture-repellent insulators

• Brass mounting stems

• Stem - 5/8"-32 thread x 1-3/8" (34.9mm) long

• Fits panels up to 1" (25.4mm) thick

• Two brass screw terminals

• Silver contacts

• Rating - 35A at 12V, 20A at 24V, 10A at 36V DC


MSRP

$45.38

U/M

/ EA

Price

$38.57

Core

Part Number

M-490-BP

Manufacturer

LITTELFUSE COMMERCIAL VEHICLE LLC

Brand

ETA

Quantity Available

9

Quantity On Order
