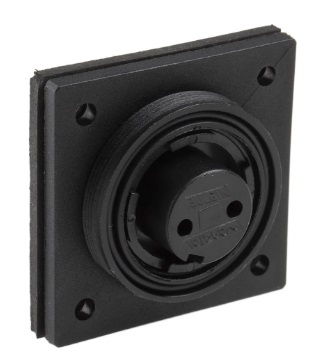

Buccaneer Waterproof Power Connector - Panel Mount - Socket Contact - 2 Pole

Buccaneer Standard Panel-Mount Connector for Power

The Buccaneer range of environmentally sealed pin and socket connectors are specifically designed for harsh applications where salt water, dust, oil or spray could present a hazard.

Panel Mount versions of these power connectors also mate with the Flex Cable versions.


Features:

• Compact design

• Water and dustproof to IP68 when mated

• IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks and 9.84kg/sq cm (140lb/sq in) 100m depth for 12 hours

• Supplied with sealing gasket and screw-sealing grommets

• Leading earth contact for 3-pole socket version

• Positive locating keyways - Cannot be misconnected

• Easy assembly - No special tools required on screw terminal versions
• Standard cable acceptance 6-8mm, 3.5-9mm range with alternative glands
• Color-coded identification variants

• Pre-wired, over-molded cable assemblies

• Power - 277 Volts AC/DC, 12 amps

• UL Listed, CSA and VDE approved

• RoHS Compliant


Sealing caps are also available to maintain IP68 rating of unmated connectors - See Mfg #PX0733 and Mfg #PX0734. They are sold separately.

Mfg No. PX0764/S

Flange Style Low-Profile

No. Poles 2

Termination Screw

Contact Type Socket

Accepts as Mate PX0733 (Cap) & PX0736/P (Plug)

Sold individually

MSRP

$31.26

U/M

/ EA

Price

$26.57

Core

Part Number

PX0764/S

Manufacturer

RS AMERICAS INC.

Brand

ETA

Quantity Available

4

Quantity On Order
