Pad Eye - Stainless Steel
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.
Harken's padeyes are made from 17-4 PH stainless.
For maximum strength, always align padeye bails to the load
Mfg No. 627
Description Small Round
Weight 4.25 oz. (118g)

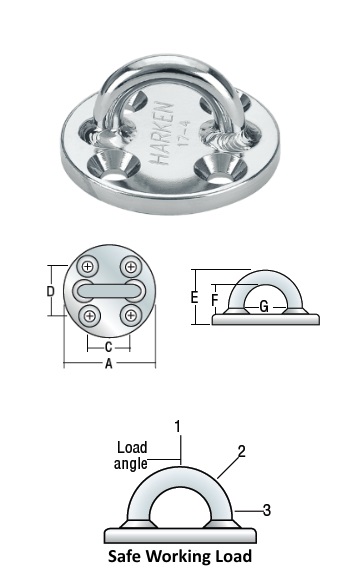

Measurements:
A 2-1/4" (57mm)
C 1-1/16" (27mm)
D 1-3/16" (30mm)
E 1-3/16" (30mm)
F 5/8" (16mm)
G 1-5/16" (24mm)
*SWL 1 5000 Lbs (2270kg)
*SWL 2 4500 Lbs (2040kg)
*SWL 3 4300 Lbs (1950kg)
**BL 1 10,000 Lbs (4535kg)
**BL 2 9000 Lbs (4080kg)
**BL 3 8600 Lbs (3900kg)
Fasteners 1/4" FH (6mm)
*SWL - Safe Working Load
**BL - Breaking Load
Note: Do NOT use Harken equipment for human suspension.
