Pad Eye - Stainless Steel
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.
Harken's padeyes are made from 17-4 PH stainless.
For maximum strength, always align padeye bails to the load
Mfg No. 648
Description High-Load Medium Round
Weight 11.00 oz. (312g)

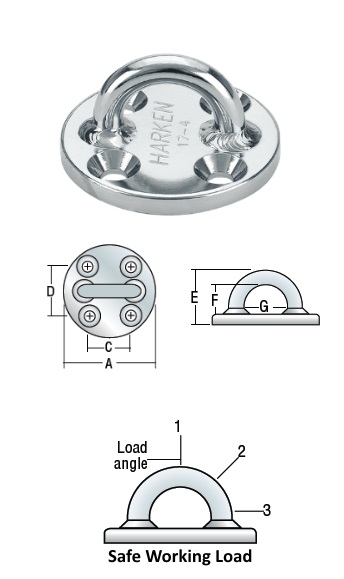

Measurements:
A 3" (76mm)
C 3" (76mm)
D 1-9/16" (40mm)
E 1-5/16" (50mm)
F 1-1/8" (29mm)
G 1-7/16" (37mm)
*SWL 1 11,800 Lbs (5358kg)
*SWL 2 10,375 Lbs (4705kg)
*SWL 3 8,500 Lbs (3855kg)
**BL 1 23,600 Lbs (10,716kg)
**BL 2 20,750 Lbs (9430kg)
**BL 3 17,000 Lbs (7710kg)
Fasteners 3/8" FH (10mm)
*SWL - Safe Working Load
**BL - Breaking Load
Note: Do NOT use Harken equipment for human suspension.
