Pad Eye - Stainless Steel
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.
The diamond-shaped padeyes are made from type 316 stainless steel. They are often used at mast bases, where the diamond shape allows them to be mounted very close together.
For maximum strength, always align padeye bails to the load
Mfg No. 688
Description Small Diamond
Weight 43.75 oz. (135g)

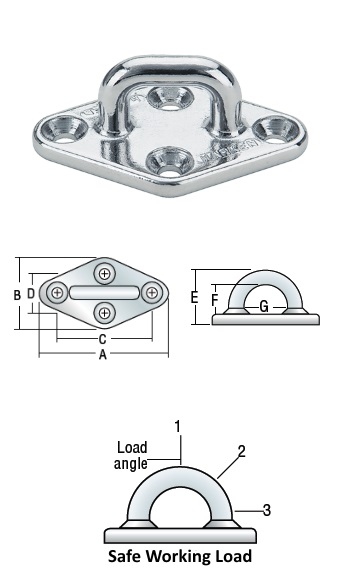

Measurements:
A 3-1/8" (79mm)
B 2" (51mm)
C 2-3/8" (60mm)
D 1-1/4" (32mm)
E 1-3/16" (30mm)
F 9/16" (14mm)
G 7/8" (22mm)
*SWL 1 3800 Lbs (1770kg)
*SWL 2 5000 Lbs (2270kg)
*SWL 3 4300 Lbs (1950kg)
**BL 1 7800 Lbs (3540kg)
**BL 2 10,000 Lbs (4535kg)
**BL 3 8600 Lbs (3900kg)
Fasteners 1/4" FH (6mm)
*SWL - Safe Working Load
**BL - Breaking Load
Note: Do NOT use Harken equipment for human suspension.
