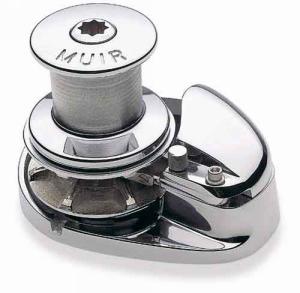

Muir Storm VRC1250 Windlass - 12 Volt

Storm VRC 1250 Vertical Windlass with Capstan

Vertical rope/chain windlass for boats from 32 feet to 42 feet LOA

Muir's 1250 features a 1000-watt motor for powerful retrieval, as well as a swiveling chainpipe, a radially adjustable gearbox, and a mirror-like stainless steel finish.


Standard Equipment:

• Foot switch

• Clutch release handle

• Max 60mm deck clearance


• Finish - Stainless steel

• Motor - Dual-direction, series wound

• Gearbox - Stainless worm drive, self-aligning radially adjustable
• Gears - Bronze

• Main Shaft - Stainless steel

• Chain Pipe - Swiveling

• Chain Stripper - Stainless steel with S.S. band

• Mounting Hardware - S.S. Studs, washers and nuts

• Manual Override (MOS) - Optional handle required

• Rope Capstan - Optional

• Extra Deck Clearance - Optional studs (to 6")


• Power Supply: 12 Volts DC

• Motor Wattage: 1000 Watts

• Power Rating: 1100 Lbs.

• Approx. Amp Draw: 100

• Max Retrieval Speed: 48 ft/min

• Chain Type/Size: 1/4" (HT), 5/16" (HT, BBB), 3/8" (HT, BBB)

• Rope Size: 1/2", 9/16", 5/8"

• Weight: 40 Lbs.
