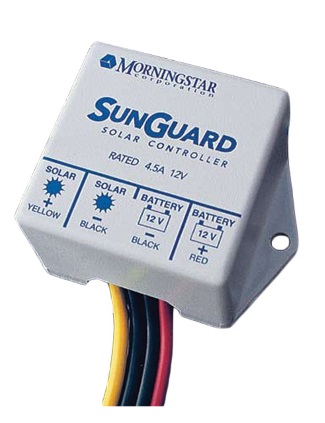

Morningstar "SunGuard" Solar Controller - 4.5 Amp 12V

"SunGuard" Solar Charge Controller

PWM (Pulse Width Modulation) Type

12-Volt/4.5 Amp - Model SG-4

Morningstar's SunGuard is the most advanced small, economical solar charge controller on the market today. Easy to install with outdoor-rated connecting wires for waterproof connection to solar module and battery.

There is no load connection on this model to produce load current. Solar current rated at 4.5-amp.


Features:

• Exceptional reliability - 100% solid state design

• PWM battery charging for extended battery life

• Consistent high quality

• Low cost

• Rated for 25% overloads and no need to derate

• Fully encapsulated in epoxy for environmental protection

• Low self-consumption at 6 mA

• Temperature compensation

• Serves ISO 9002 quality programs/ CE certified

• 5-year manaufacturer's warranty


• Ambient operating temperature from -40 to +60° C.

• Dimensions - 2.5" x 2.0" x 1.5" (64 x 51 x 38mm)

• Weight - 0.2 Lbs. (0.09 kg)


MSRP

U/M

/ EA

Price

$51.00

Core

Part Number

SG-4

Manufacturer

Web Morningstar Corp.

Brand

ETA

Quantity Available

1

Quantity On Order
