Oberdorfer Model N211M Rubber Impeller Pump - 12.5 GPM

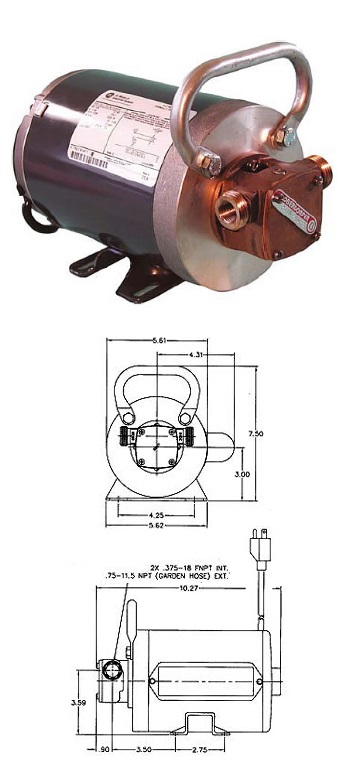

Model 211M-F34 Close-Coupled Rubber Impeller Pump

Rugged Bronze Construction - 115 VAC Single Phase

Oberdorfer Pumps has been manufacturing high-quality, dependable pumps for over 100 years. Single-phase motors are non-reversible and are wired for the proper pump rotation, which is clockwise facing pump end. Liquid flow direction is right to left facing pump end.

Rubber impellers generate high rubbing friction unless lubricated by liquid pumped. Do not run these pumps dry as lack of liquid will cause impeller to burn up.

These pumps utilize Neoprene impellers that can handle fresh and saltwater solutions and some mild chemicals. Do not pump severe solvents or acids, and whenever possible, flush pump with fresh water after usage.

Suction lift of 10 feet is possible when impeller is wet. Suction lines must be airtight in order for pump to self prime. A foot valve at beginning of suction line is recommended.


Features:

• Corrosion-resistant bronze body

• Large vent openings separate pump and motor

• Impeller and cam are easily replaced

• Shaft slinger protects motor bearings

• External garden hose threads and internal NPT port connections
• Stainless steel motor shaft

• Neoprene impeller (standard)

• Buna-N rubber lip seal

• Open Drip-Proof (ODP) enclosure

• Grounded 3-conductor plug-in cord

• Convenient carrying handle


• Power - 115 volts AC, 60 Hz/Single Phase

• Motor - 1/3 HP/3450 RPM

• Maximum discharge of 12.5 gallons/minute at 2 PSI

• Maximum pressure to 30 PSI, 70 feet of head

• Suction lift to 10 feet with wet impeller

• Ports - 3/4" Garden Hose and 3/8" internal NPT

• Temperature limit for bronze pumps is 212° F

• PH-range for bronze pumps is from 4 to 11


MSRP

$1,752.58

U/M

/ EA

Price

$1,489.69

Core

Part Number

N211M-05F34

Manufacturer

Web Oberdorfer

Brand

ETA

Quantity Available

1

Quantity On Order
