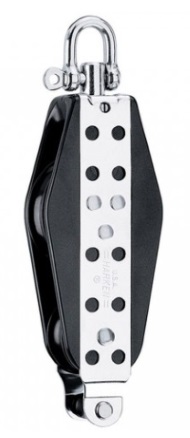

Midrange Fiddle Block - 76mm - Fiddle / Becket

Midrange Fiddle Block - 76mm - Fiddle / Becket

SKU: 101000

$207.24 / EA


Midrange Fiddle Block - 76mm Sheave

Midrange blocks' robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheaves run exclusively on ball bearing systems for fast trim and release under any load.

The free-rolling Delrin® ball bearings, sheave, and side plates are UV-stabilized with carbon-black additive for maximum protection. A stainless steel side strap wraps across the block head for increased strength and safety. (Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.)

The wide-diameter 3.00" (76mm) ball bearing sheave accepts 9/16" (14mm) line.


Use for:


  • Mainsheets
  • Halyards
  • Spinnaker sheets
  • Control lines

Specifications:

  • Sheave Diameters - 3" and 2" (76 and 51mm)
  • Max Line Diameter - 9/16" (14mm)
  • Shackle Pin Diameter - 5/16" (8mm)
  • Max Working Load - 1,800 Lbs (816kg)
  • Breaking Load - 5,000 Lbs (2,268kg)

Mfg No. 1560

Description Fiddle / becket

Length 9-1/2" (241mm)

Use with: No. 1559 for 4:1

Weight 18.0 oz. (510g)

MSRP
$235.50
U/M
/ EA
Price
$207.24
Part Number
1560
Manufacturer
HARKEN INC.
Quantity Available
2
Quantity On Order
