Manual M-Series Mini Battery Keyed Switch
SKU: 79905

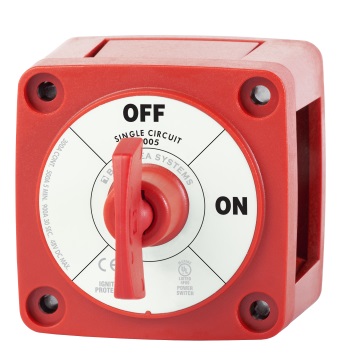

Mini "ON/OFF" Single Circuit Battery Keyed Switch
This Mini-Series battery switch with 300-amp continuous rating for outboards and small inboard gasoline engines will disconnect a single battery bank in emergencies, or when vessel is not in use. Made of all non-corrosive marine-grade materials, it is ideal for marine or RV applications.
2-Position model (ON/OFF single circuit) switch a single battery to a single load group.
Features:
- Ignition protected - safe for installation aboard
gasoline-powered boats
- Tactile textures indicate knob position by feel only
- Removable key
- Case design allows surface or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" stud length to accept multiple cable terminals
- Molded in durable reinforced polycarbonate
- Label with international ON/OFF legends
- MICON label set included for circuit identification
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Waterproof rated IP66 - protected against powerful water jets
Specifications:
- Cranking rating - 10 seconds/ 1500 amps DC
- 1 Minute Cranking rating - 775 amps
- 5 Minute Intermittent rating - 500 amps
- Maximum voltage rating - 48 volts DC
- Continuous amperage rating - 300 amps
- Terminal stud - Tin-plated copper 3/8"-16 (M10)
- Torque - 120 inch-lbs.
- Cable size to meet ratings - 4/0
- Cable quantity to meet ratings - 2 cables
- Cable clearance for 4/0 cables at 1.12" (28.4mm)
- Case material - Reinforced polycarbonate
- Mounting holes - Accepts #10 screws
- UL Listed - CE Approved
- Meets UL1107 - Electrical Power Switch
- Meets UL 1500 and SAE J171 for external ignition
protection requirements
-
MSRP
-
$43.80
-
U/M
-
/ EA
-
Price
-
$37.23
-
Core
-
-
Part Number
-
6005
-
Manufacturer
-
BLUE SEA SYSTEMS
-
Brand
-
-
ETA
-
-
Quantity Available
-
3
-
Quantity On Order
-
1
