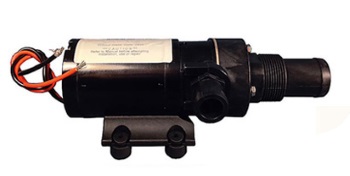

Raritan Macerator Pump w/Hose Barb - 12V

SKU: 45115

$306.00 / EA

Enter Quantity

Options:

Macerator Pump w/Hose Barb - 12 Volt

These macerator pumps are equipped with motors with the following specifications: Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, powder-coated housing with sealed ball bearing.

Features:

All stainless steel bolts to avoid corrosion problems
Spring loaded Viton® shaft seal prevents premature leaks
Proprietary rubber impeller compound allows longer dry-running time

Specifications:

Pump - Self-priming flexible rubber impeller with stainless wear plate
Impeller - Raritan propietary nitrile compound
Blade - Stainless steel double-cut
Seal - Viton® lip with type 316 stainless steel spring and case
Inlet Ports - 1-1/2" Hose barb and 1-1/2" NPT Male
Outlet Port - 3/4" MNPT
Lead Wires - 14 gauge, red and black
Approvals - Ignition protected, ISO 8846
Weight - 5 Lbs.

Head	Flow	Max DC Amps
0 Feet (0 m)	11.0 gpm (42 lpm)	10.9
5 Feet (1.5 m)	10.1 gpm (38 lpm)	11.1
10 Feet (3.0 m)	9.0 gpm (34 lpm)	11.4
15 Feet (4.6 m)	7.7 gpm (29 lpm)	11.8
20 Feet (6.1 m)	6.4 gpm (24 lpm)	12.3

Maximum Operating Head - 30 feet

A repair kit for this pump is available and sold separately - (Sku# 45121)

MSRP: $360.00
U/M: / EA
Price: $306.00
Core
Part Number: 5310012
Manufacturer: RARITAN ENGINEERING COMPANY
