Long "D" Shackle - Stainless Steel - 5/16"

Long Dee Shackle

Type 316 Stainless Steel Body and Pin

• High strength-to-weight ratio


Mfg No. RF624

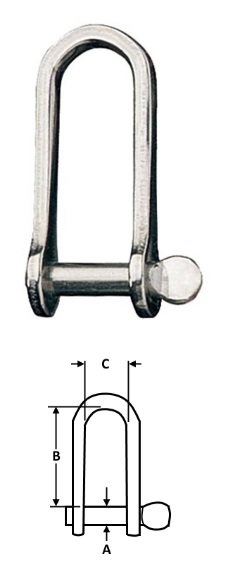

(A) Pin Diameter0 5/16" (7.9mm)

(B) Inside Length 2-5/32" (55mm)

(C) Throat 21/32" (17mm)

UDL (BL)¹ 7,940 Lbs (3,600kg)

PL (BL)² 5,950 Lbs (2,700kg)

Weight 2.1 oz. (60g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$16.85

U/M

/ EA

Price

$16.85

Core

Part Number

RF624

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

5

Quantity On Order
