Long "D" Shackle - Stainless Steel - 3/16"

Long Dee Shackle

Type 316 Stainless Steel Body and Pin

• High strength-to-weight ratio


Mfg No. RF622

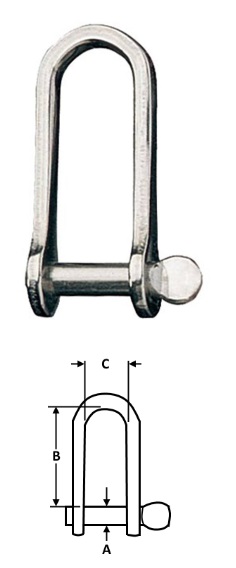

(A) Pin Diameter 3/16" (4.8mm)

(B) Inside Length 1-7/32" (31mm)

(C) Throat 7/16" (11mm)

UDL (BL)¹ 3,090 Lbs (1,400kg)

PL (BL)² 1,760 Lbs (800kg)

Weight 0.5 oz. (15g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$10.574

U/M

/ EA

Price

$10.574

Core

Part Number

RF622

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

4

Quantity On Order
