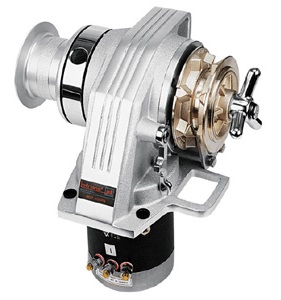

Lofrans "Kobra" Windlass - Clear Anodized - 12 Volt

Lofrans "Kobra" Windlass

Horizontal windlass for boats from 26 feet to 46 feet LOA

The "Kobra" features a vertically-aligned, drop-in motor and a compact above-deck profile that make it ideal for crowded foredecks and installations where space is limited. Dual gypsies provide for chain and rope applications.


Standard Equipment:

• Two foot switches

• Watertight control box

• Clutch/manual operation handle


• Finish - Clear anodized aluminum

• Motor - Dual-direction, permanent magnet

• Gearbox - Stainless worm drive

• Gears - Bronze

• Main Shaft - Stainless steel

• Chain Pipe - Deck ring

• Chain Stripper - Stainless steel

• Mounting Hardware - Insulated Bushings only

• Manual Override - Standard

• Rope Capstan - Standard

• Extra Deck Clearance - N/A


• Power Supply: 12 Volts DC

• Motor Wattage: 1000 Watts

• Power Rating: 1900 Lbs.

• Approx. Amp Draw: 70-120

• Maximum Retrieval Speed - 75 ft/min

• Chain Type/Size: 1/4" (HT), 5/16" (HT, BBB, PC), 3/8" (HT, BBB, PC)
• Rope Size: 1/2" - 3/4" (Rope Drum)

• Weight - 46 Lbs.


MSRP

$3,295.00

U/M

/ EA

Price

$2,471.25

Core

Part Number

LW375

Manufacturer

WEB LOFRANS' WINDLASSES

Brand

ETA

Quantity Available

0

Quantity On Order
