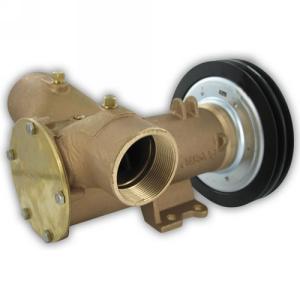

Jabsco 18330 Series Engine-Driven Bilge Pump - Electric Clutch

2" Jabsco Electro-Magnetic Clutch Pump - 12 Volt DC

Constructed from marine-quality bronze and stainless steel for ruggedness and reliability. Ideal for engine cooling, and pumping water. Self-priming, with the ability to operate in either direction at variable speeds. Can also be used for washdown, bait tank circulation, bilge pumping and many general purpose, utility and dockside applications.


Features:

• Inexpensive to buy and operate

• Removable end cover for easy impeller service and pump maintenance
• Will tolerate abrasive wear

• Handles hard and soft solids without clogging

• Can pump in either direction

• Will not air-lock

• Draws 4 amps


• Nominal flow rate - 83 gallons/min (314 L) at 1750 RPM

• Self-priming from dry up to 7.8 feet (2.4m)

• Corrosion-resistant bronze body

• Nitrile impeller

• Replaceable wear plate

• Stainless steel shaft

• Carbon/ceramic mechanical-type shaft seal

• Twin single row, ball-type bearings

• Port thread - 2" NPT internal

• Electro-magnetic clutch

• Pulley - 7" (178 mm)

• Replacement GASKET (Sku# 20515)

• Replacement SEAL (Sku# 20700)

• Service Kit #90254-0001 (Neoprene) / #90254-0003 (Nitrile)


MSRP

$2,007.76

U/M

/ EA

Price

$1,706.60

Core

Part Number

18330-0000

Manufacturer

Website Jabsco

Brand

ETA

Quantity Available

0

Quantity On Order
