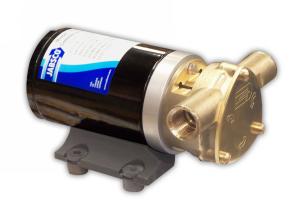

Jabsco "Water Puppy" Bilge Pump - Commercial Duty - 12 VDC

"Water Puppy" Bilge Pump

Commercial - Intermittant duty pump, with reversible motor.

Small bilge debris present no problem to this heavy-duty bronze-bodied, flexible impeller pump. Use for bilge pumping, livewell circulation, washdown and general pumping requirements. Not waterproof - this pump must not be submerged.

Pump has a dry prime suction lift of about 6 feet (2 meters) and a lift to 20 feet (6 eters) when primed.

Note: Flexible impeller pumps must NOT be run dry, as the pumped liquid is the lubricant for the impeller.


Dimensions:

• 3" (76mm) x 4-3/4" (120mm) x 6-7/8" (175mm)


• Simple design means fewer wearing parts

• Has adequate torque to reverse the pump

• Supplied with adapter for 3/4" garden hose thread


• Power input - 12 Volt DC/draws 11.5 amps

• Flow rate - 9 GPM (34 L) nominal

• Self-priming from dry up to 6-feet (2 meters)

• Bronze body

• Nitrile impeller

• Lip-type seal

• Permanent magnet type motor, fully enclosed

• Stainless Steel shaft

• Ball-type shaft bearing

• Operation pressure should not exceed 20 feetof head (8.7 PSI)

• Liquid temperature range from 45-180° F (7-82° C)

• Weight at 6 lbs.

• Internal port - 1/2" pipe threads

• External port - 1" hose barb

• Meets USCG 183.410 Electrical Standards

• Meets ISO 8846 MARINE (Ignition protection)


MSRP

$531.03

U/M

/ EA

Price

$451.38

Core

Part Number

18670-0123
