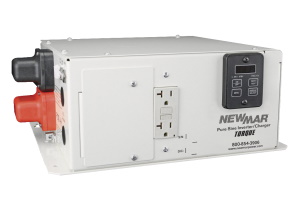

Torque Series Inverter-Chargers
Mfg# 2400TQ-24
High Power DC-AC Inverters with Built-in Battery Chargers
The "Torque" Series (TQ) incorporates all the ruggedness and reliability of the perfect wave series but with upgraded electronics that provide higher peak power, efficiency, protection and a high-power density, resulting in a reduction in case size. Diagnostic monitor panel with power limit programming is built-in with an optional full-function LCD text display.
For use with 12 and 24-volt battery systems provide continuous-rated AC power ranging from 1000 to 3000 watts at 115 VAC-60 Hz., and battery charging from 60 to 150 amps.
TQ inverter-chargers deliver high-surge capability for starting motor loads and pure, sinusoidal AC for flawless operation of all appliances and sensitive electronics. They are ideal for entertainment systems and micro-processor-based equipment such as computers, which are intolerant to AC wave distortion.
Whenever shore or generator AC power is available, a built-in automatic transfer switch activates the multi-stage battery charger for rapid and safe replenishment of the inverter battery bank.
Protection features include thermally controlled cooling fans, low-voltage cutout, thermal and overload protection, ground fault interruption, and a built-in rugged powder-coated aluminum case suitable for permanent horizontal or bulkhead mounting. A front-panel LED display provides basic diagnostics and voltage data. It can also be removed and installed as a remote. An optional LCD remote indicator and control panel is available for all models.
Specifications:
