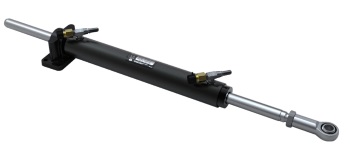

Teleflex "SeaStar" Hydraulic Steering Cylinder - Inboard - Mfg# HC5314-3

SeaStar® Hydraulic Cylinder

For 2-Line Inboard Steering - Boats to 50 Feet

SeaStar Inboard Steering Systems are engineered and manufactured for all pleasure and workboat applications up to 50 feet, with some exceptions.


Features:

• Regular-duty aluminum cylinders

• Heavy-duty brass cylinders

• Easy installation for single and dual rudder vessels

• Cylinders supplied with bleeder fittings

• Two axis articulation

• Easy autopilot interface


Mfg No. HC5314-3¹

Cylinder Model BA150-7ATM²

Bore Diameter 1.50" (38.1mm)

Nominal Shaft Dia. .625" (15.9mm)

Stroke 7" (178mm)

Area 1.46 sq in (9.4cm²)

Volume 10.2 cu in (167.5 cc)

Torque* 7117 lb/in (82.0 kg/m)

* Torque - Theoretical torque about pivot point at 35° articulation with 1,000 PSI (70 bar) system pressure

1. Also used in some stern drive applications
2. ATM - Aluminum body, trunnion mount

MSRP

$935.79

U/M

/ EA

Price

$795.42

Core

Part Number

HC5314-3

Manufacturer

SEASTAR SOLUTIONS

Brand

ETA

Quantity Available

1

Quantity On Order
