Hydraulic Steering Cylinder - Inboard

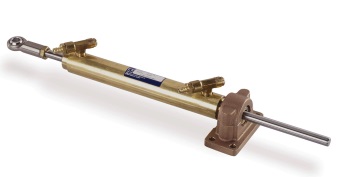

SeaStar® Hydraulic Cylinder

For 2-Line Inboard Steering - Boats to 50 Feet

SeaStar Inboard Steering Systems are engineered and manufactured for all pleasure and workboat applications up to 50 feet, with some exceptions.


Features:

• Regular-duty aluminum cylinders

• Heavy-duty brass cylinders

• Easy installation for single and dual rudder vessels

• Cylinders supplied with bleeder fittings

• Two axis articulation

• Easy autopilot interface


Mfg No. HC5319-3

Cylinder Model BA175-7TM¹

Bore Diameter 1.75" (44.4mm)

Nominal Shaft Dia. .75" (19.0mm)

Stroke 7" (178mm)

Area 1.96 sq in (12.7cm²)

Volume 13.7 cu in (225.4 cc)

Torque* 9569 lb/in (110.2 kg/m)

* Torque - Theoretical torque about pivot point at 35° articulation with 1,000 PSI (70 bar) system pressure

1. TM - Brass body, trunnion mount

MSRP

$1,522.54

U/M

/ EA

Price

$1,294.16

Core

Part Number

HC5319-3

Manufacturer

SEASTAR SOLUTIONS

Brand

ETA

Quantity Available

3

Quantity On Order
