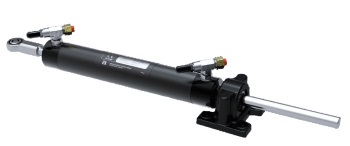

Teleflex "SeaStar" Hydraulic Steering Cylinder - Inboard - Mfg# HC5313-3

SeaStar® Hydraulic Cylinder

For 2-Line Inboard Steering - Boats to 50 Feet

SeaStar Inboard Steering Systems are engineered and manufactured for all pleasure and workboat applications up to 50 feet, with some exceptions.


Features:

• Regular-duty aluminum cylinders

• Heavy-duty brass cylinders

• Easy installation for single and dual rudder vessels

• Cylinders supplied with bleeder fittings

• Two axis articulation

• Easy autopilot interface


Mfg No. HC5313-3

Cylinder Model BA135-7ATM¹

Bore Diameter 1.375" (34.9mm)

Nominal Shaft Dia. .625" (15.9mm)

Stroke 7" (178mm)

Area 1.18 sq in (7.6cm²)

Volume 8.2 cu in (135.1 cc)

Torque* 5741 lb/in (66.1 kg/m)

* Torque - Theoretical torque about pivot point at 35° articulation with 1,000 PSI (70 bar) system pressure

1. ATM - Aluminum body, trunnion mount

MSRP

$817.64

U/M

/ EA

Price

$694.99

Core

Part Number

HC5313-3

Manufacturer

SEASTAR SOLUTIONS

Brand

ETA

Quantity Available

2

Quantity On Order
