Hubbell Shore Power Inlet - Stainless Steel - 50A 125/250V

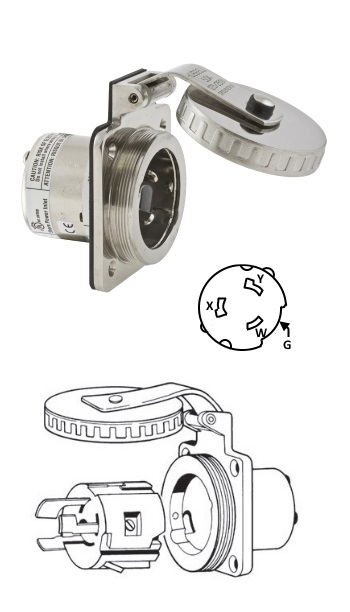

Shore Power Inlet - Stainless Steel

50A 125/250V Twist-Lock® 3 Pole 4 Wire

This traditional stainless steel shore-power inlet has a threaded base for making a watertight seal. When inlet is in use, the threaded base mates to the threaded ring of the watertight cover on the connector body. When not in use, it mates to the threaded self-closing cover. The gasketed, self-closing cover completely shields the interior from the elements when not in use and is watertight when the cover is securely fastened.

• Base and cover are #316 stainless steel for strength and corrosion resistance

• Contact blades are nickel-plated brass for corrosion resistance
• Pressure screw terminals for secure terminations, clearly marked for easy ID

• Thermoset contact carriers are arc and heat resistant

• Self-closing cover is friction tight to remain open while engaging cable set

• Cover shields interior from elements when inlet is not in use
• Neoprene inner-gasket seals cover when closed

• Three screws "lock-in" the interior once it is in place

• Rear enclosure is nickel-plated for corrosion resistance

• Threaded base makes watertight seal with connector or cover

• Rear portion has a 2.17" (55.1mm) diameter

• Mounting holes are 2-3/8" (60.3mm) on center

• Mounting screws and gasket are included

• NEMA L5-30R

• UL Marine Listed, CSA-approved

• IP56 suitability


MSRP

$374.80

U/M

/ EA

Price

$318.58

Core

Part Number

HBL504SS

Manufacturer

HUBBELL INC. (DELAWARE) WIRING

Brand

ETA

Quantity Available

0

Quantity On Order

5
