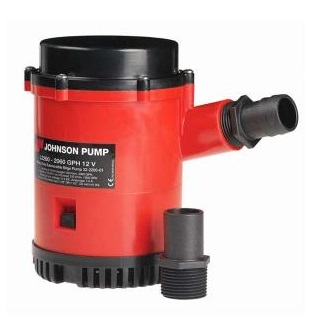

Johnson L2200 Heavy-Duty Submersible Bilge Pump - 12V

Heavy-Duty Submersible Bilge Pump - 12V

The L2200 Series Johnson Pumps are the best choice when looking for high performance, heavy-duty submersible pumps designed to meet the tough demands of commercial and recreational duty. The impeller
is carefully designed and tested to maximize head and flow. This pump may be automatically controlled with an automatic switch AS888, an electronic float switch, or the new Johnson Ultima Switch (switches sold separately). It may also be manually operated via the Johnson Pump bilge control panel (control panel also sold separately).

Note: Submersible bilge pumps are not self-priming and must be installed in the deepest part of the bilge.


Features:

• Heavy-duty, 12-pole double ball bearing motor

• Motor is liquid-cooled for extended life

• Quality-engineered mechanical seal reduces shaft wear and allows for service or replacement

• Removable check valve included

• Built to ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps


• Power input - 12V (7.5A)

• Thermoplastic pump body

• Mechanical shaft seal of carbon ceramic

• Stainless steel shaft (SS2343)

• Wire size - 16 gauge

• Wire length - 6 feet (1.8 meters)

• Flow rate - 1900 GPH at 3-ft head (120 liters/minute)

• Discharge port connection - 1-1/8" and 1-1/4" hose

• Maximum head - 15 feet

• Maximum diameter - 4.25" (108mm)

• Maximum height - 7" (177mm)

• Weight - 6 lbs. (2.7 kg)

• CE-approved


MSRP

$196.34

U/M

/ EA

Price

$166.89

Core

Part Number

22004

Manufacturer

SPX FLOW US, LLC

Brand

ETA

Quantity Available

4

Quantity On Order
